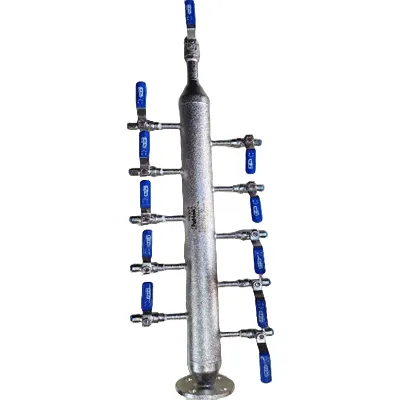

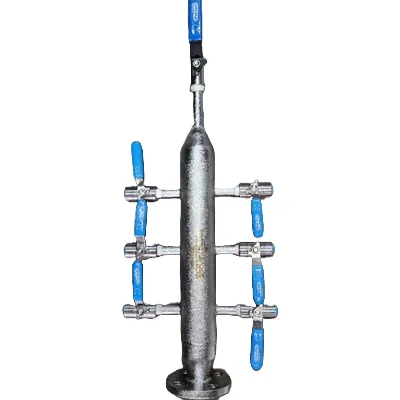

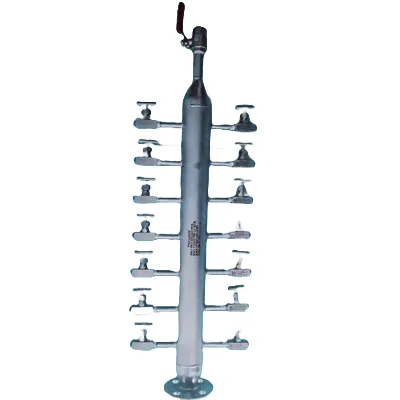

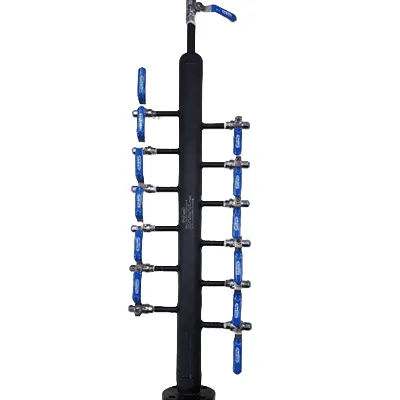

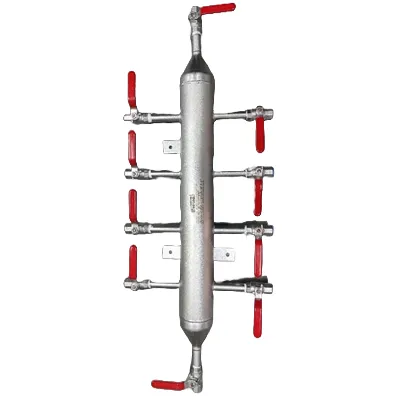

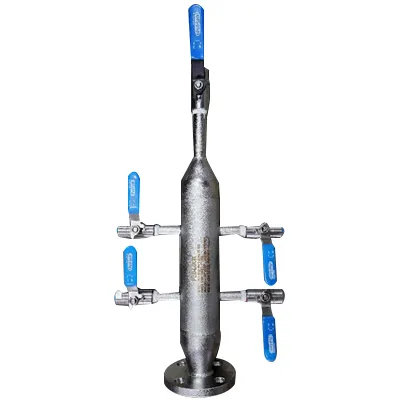

Air Headers

INSTRUMENT ACCESSORIES
INSTRUMENT ACCESSORIES
INSTRUMENT ACCESSORIES
INSTRUMENT ACCESSORIES
INSTRUMENT ACCESSORIES
INSTRUMENT ACCESSORIES
INSTRUMENT ACCESSORIES
Specifications:
  • Rating: Up to 3,000 psi @ up to 250ºF
  • Tube Size: 2” 3” 4” 6”
  • Outlet Connections: ¼” and ½” BSP/NPT
  • Inlet Connections: 1” 150# AND 300# CLASS
  • Drain Connections: ½” & 1” BSP/NPT
  • Valve: Needle valve & Ball valve
  • Material: SS, CS and other Material Other as Per Your Requirements
Application:
  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry
Testing:
  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure: 3000 psi (210 bar)
Hydro Tests:
  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are available upon request.
