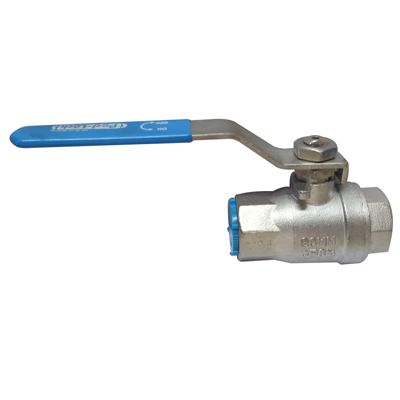

IC BALL VALVE

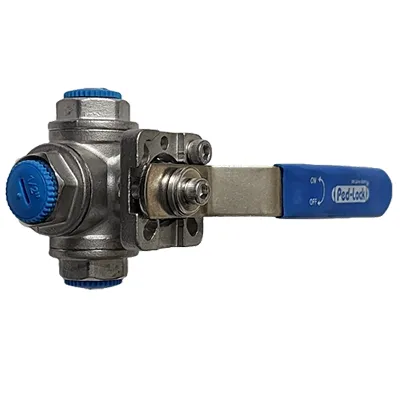

IC BALL VALVE/17
IC BALL VALVE/17
IC BALL VALVE/17
IC BALL VALVE/17
Specifications:
  • Rating: Up to 1,000 psi @ up to 180ºF
  • Stem & Body Seal: ‘O’ring (Nitrile & Viton)
  • Seat Packing: POM & Peek
  • Tube Size: 1/4” to 2”
  • Connections: Threaded
  • Body: Bar Stoke, Forged Steel and Investment Casting
  • Material: SS, CS and other Material Other as Per Your Requirements
Application:
  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry
Key Features:
  • SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. PTFE seat for better performance.
  • Ball hard chrome plated for smooth operation.
Physical Features:
  • Pressure rating 50 kg/cm2
Testing:
  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure: 1000 psi (50 bar)
Hydro Tests:
  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are available upon request.
