PTFE LINED HOSE

PTFE LINED HOSE

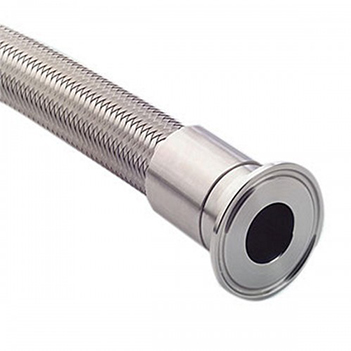

PTFE LINED HOSE Manufacturer

PED-LOCK PTFE lined hoses has the internal tube of PTFE inside the corrugated metallic hoses. PTFE lined hose has a PTFE liner and a braided or rubber cover.

PTFE lined flexible hose is the premium product used to transfer process fluids in a wide variety of industries. It is used as a chemically inert, easy clean Pharmaceutical hose, a corrosion resistant suction discharge Chemical hose, a fully compatible Food and Drinks hose, and a hose to transfer paints, resins, inks and other process fluids.

The flange is assembled with the internal tube providing a liner inside and across the face of the flange. Chemical inertness is therefore maintained throughout the entire assembly.

Specifications:
  • Tube: PTFE tube;
  • Cover: 303×× series stainless steel wire
  • Reinforcement: 303×× series stainless steel wire
  • Max working pressure: 1523psi at 5/16" I.D.;
  • Working temperature : S: -65°F to +400°F (-54°C to +204°C); Static: -65°F to +450°F (-54°C to +232°C);
  • Min bend radius: 75mm at 5/16" I.D.;
  • Inside diameter:  5/16 - 1-1/4;
  • Safety factor: 4:1;
  • Pressure gratide:medium
