Safety Valves

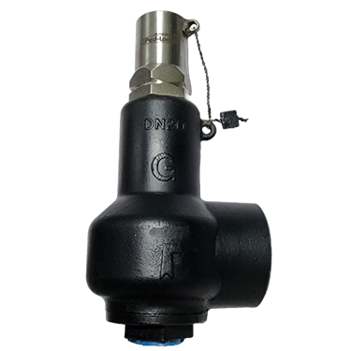

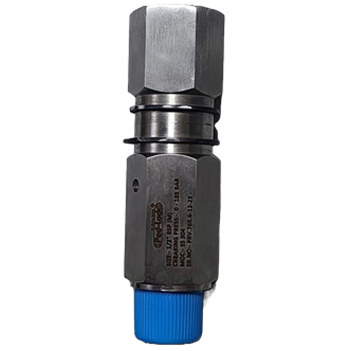

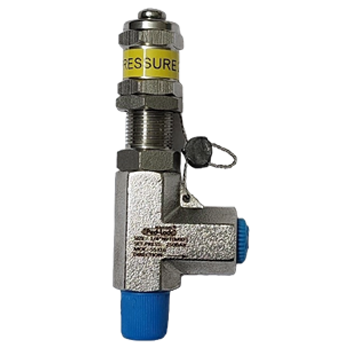

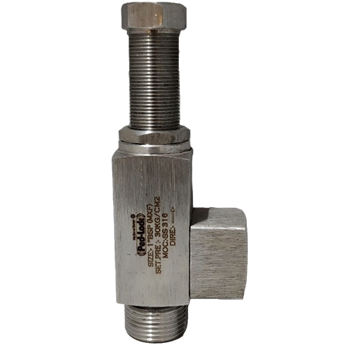

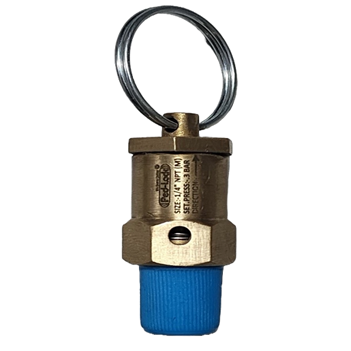

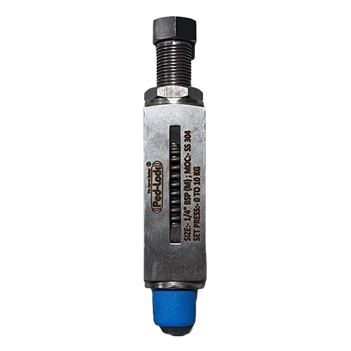

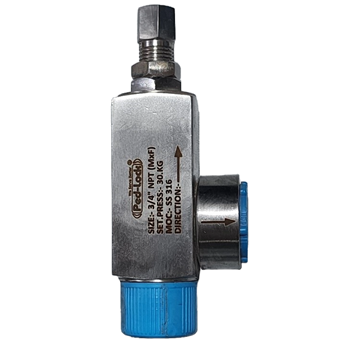

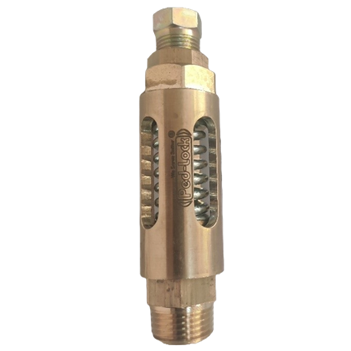

safety valve
safety valve
safety valve
safety valve
safety valve
safety valve
safety valve
safety valve

safety valve
safety valve
safety valve
safety valve

safety valve
safety valve
safety valve
safety valve
Specifications:
  • PressureRating: 6,000 psi @ up to 180ºF
  • Stem & Body Seal: ‘O-ring (Nitrile & Viton)
  • Seat Packing: PTFE
  • Size: 1/4” to 3”
  • Connections: Threaded and Flange End
  • Body: Bar Stock & Forged Steel
  • Material: SS, CS and other Material Other as Per Your Requirements
safety valve
Application:
  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry
Key Features:
  • SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. VITON  seat for better performance.
Physical Features:
  • Pressure rating 420 kg/cm2
Testing:
  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure : 6000 psi (420 bar)
Hydro Tests:
  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are available upon request.
