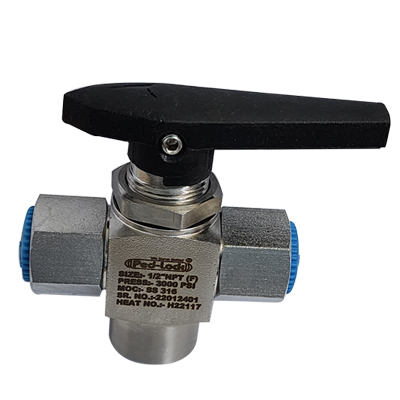

PENAL MOUNTING FEMALE 3WAY/2WAY BALL VALVE

Specifications:
  • Rating : Up to 3,000 psi @ up to 600ºF
  • Stem & Body Seal : ‘O’ring (Nitrile & Viton)
  • Seat Packing : POM & Peek
  • Tube Size : 1/4” to 1”
  • Connections : Threaded
  • Body : Bar Stock & Forged Steel
  • Material : SS, CS and other Material Other as Per Your Requirements
Application:
  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry
Key Features:
  • SS 316 construction for corrosion resistance, full or reduced bore for excellent flow.peek/delrin seat for better performance.
  • Ball hard chrome plated for smooth operation.
Physical Features:
  • rating 210 kg/cm2
Testing:
  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure : 3000 psi (210 bar)
Hydro Tests:
  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are availbale upon request.
