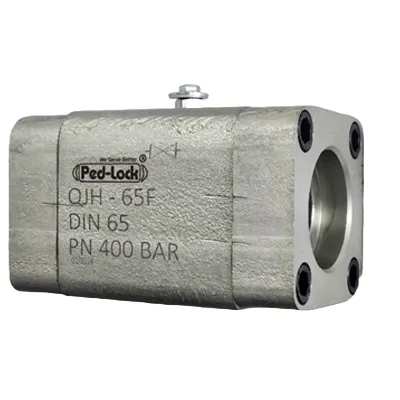

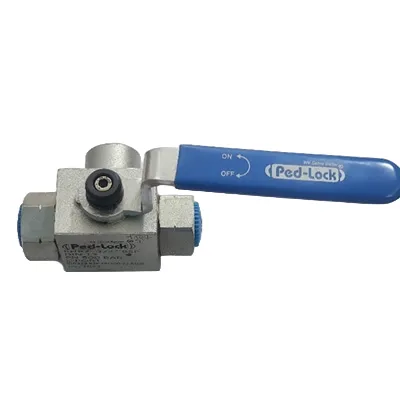

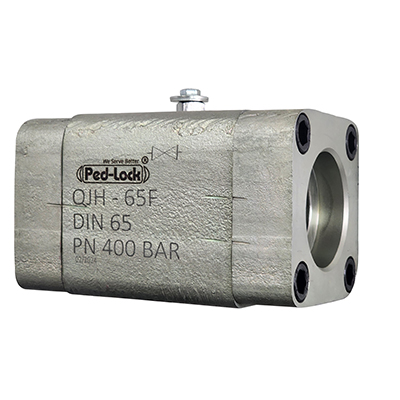

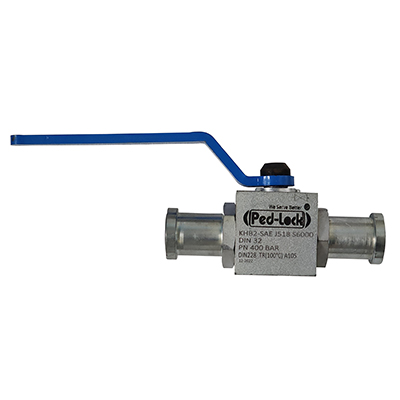

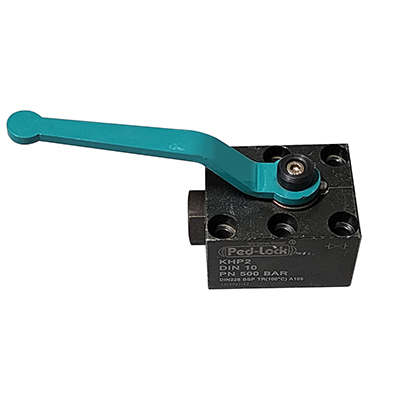

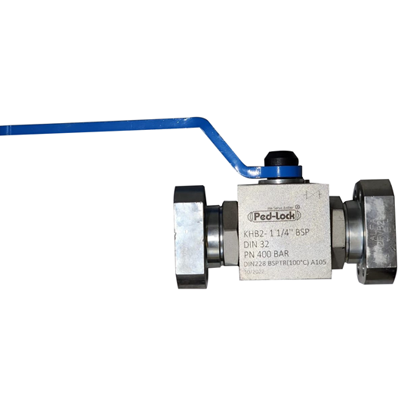

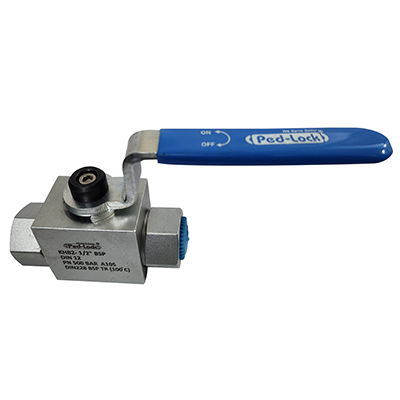

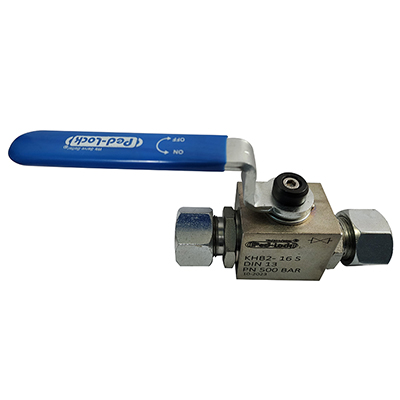

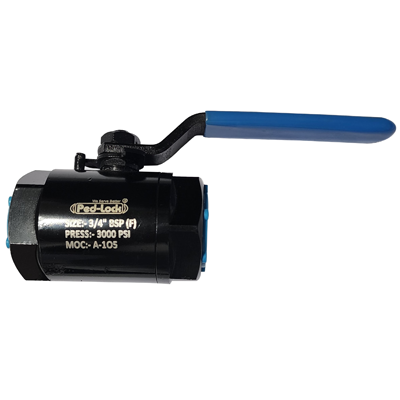

HYDRAULIC BALL VALVE
Specifications:
Rating:
Up to 7,000 psi @ up to 180ºF
Stem & Body Seal:
‘O-ring (Nitrile & Viton)
Seat Packing:
Ptfe & Peek
Tube Size:
1/4” to 2”
Connections:
Threaded
Body:
Bar Stock & Forged Steel
Material:
SS, CS and other Material Other as Per Your Requirements
Application:
Chemicals industry
Food Fats and fertilizer industry
Ship building
Construction industry
Key Features:
SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
Ball hard chrome plated for smooth operation.
Physical Features:
Pressure rating 500 kg/cm2
Testing:
For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
Working pressure: 7000 psi (500 bar)
Hydro Tests:
Performed with pure water at 1-1/2 times of the working pressure.
Other tests like helium, seismic are available upon request.
