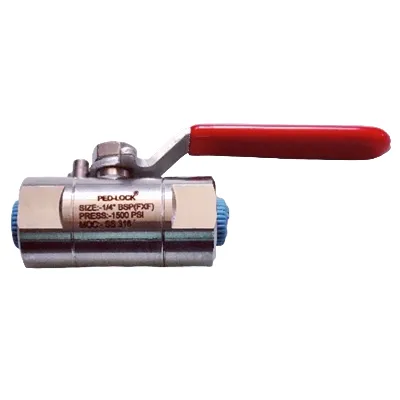

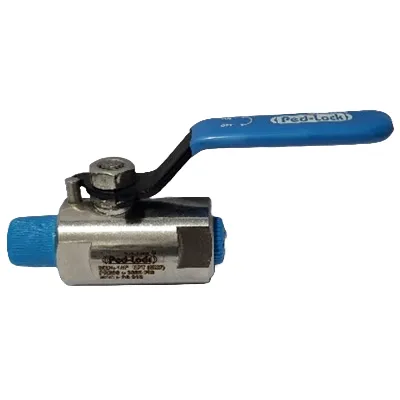

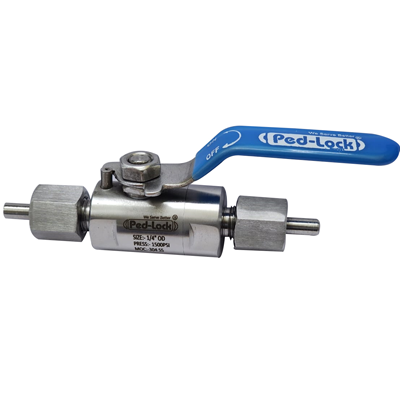

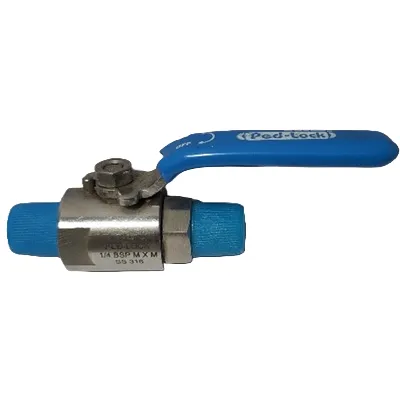

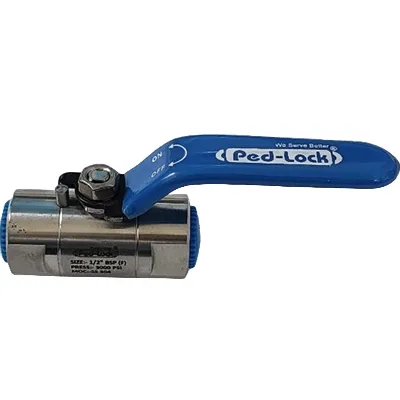

ROUND BODY BALL VALVE 1500PSI TO 3000PSI

ROUND BODY BALL VALVE 1500PSI TO 3000PSI
ROUND BODY BALL VALVE 1500PSI TO 3000PSI
ROUND BODY BALL VALVE 1500PSI TO 3000PSI
ROUND BODY BALL VALVE 1500PSI TO 3000PSI
ROUND BODY BALL VALVE 1500PSI TO 3000PSI
ROUND BODY BALL VALVE 1500PSI TO 3000PSI
Specifications:

Rating: Up to 3,000 psi @ up to 180ºF
Stem & Body Seal: ‘O’ring (Nitrile & Viton)
Seat Packing: POM & Peek
Tube Size: 1/4” to 2”
Connections: Threaded
Body: Bar Stock & Forged Steel
Material: SS, CS and other Material Other as Per Your Requirements

Application:
  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry
Key Features:
  • SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
  • Ball hard chrome plated for smooth operation.
Physical Features:
  • Pressure rating 210 kg/cm2
Testing:
  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure: 3000 psi (210 bar)
Hydro Tests:
  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are available upon request.
