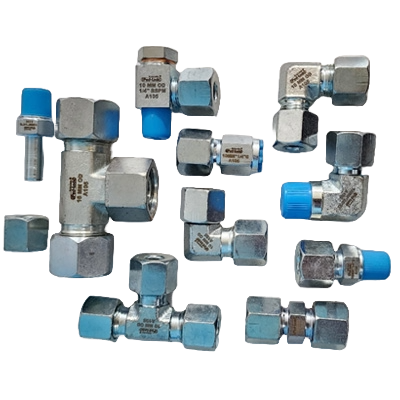

HYDRAULIC TUBE FITTING

Single Ferrule Bite Type Fittings— DIN 2353

Ped-lock Single Ferrule Bite Type Fittings are the most widely used bite type fittings in the world. These Single Ferrule Bite Type Fittings are flare less bite type metric fittings that consists of a body, progressive ring (ferrule) and nut. On assembly, two cutting edges of the ferrule “bite” into the outer surface of the tube ensuring the necessary holding power for high operating pressures. Features These Single Ferrule Bite Type fittings and accessories (Three Series) are manufactured in accordance with DIN 2353 for fluid application The three components of Single Ferrule Bite Type Fittings are designed to produce a strong, reliable, leak-free joint upon proper assembly Couplings are best suited for steel, cop or stainless steel tubes where brazing, soldering, welding, flaring or threading is not possible or permissible

Ped-lock Single Ferrule Bite Fittings are the most widely used fittings in the world. Single Ferrule Fittings are flarless bite type metric fittings that consist of a body, progressive ring (ferrule) and nut. On assembly, two cutting edges of the ferrule "bite" into the outer surface of the tube ensuring the necessary holding power for high operating pressures.

  • Pipe Size: 4MM TO 50MM
  • Connection: Threaded
  • Plating: Zink Plating

Features:

  • Quick open design
  • Excellent surface treatment
  • Longer service life

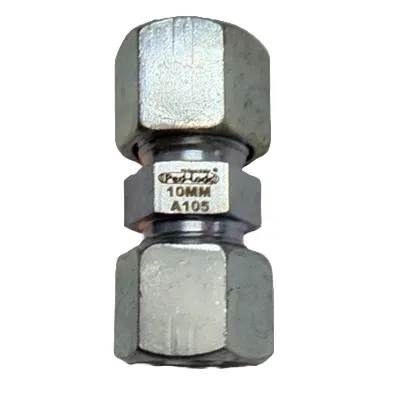

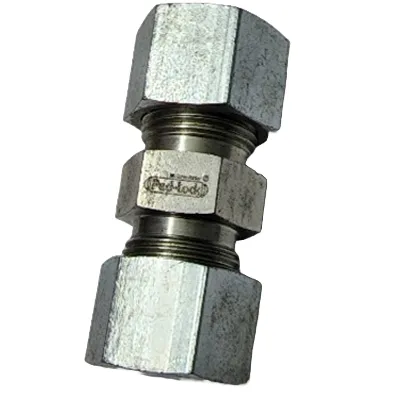

STRAIGHT COUPLING “ G”

STRAIGHT COUPLING “ G”

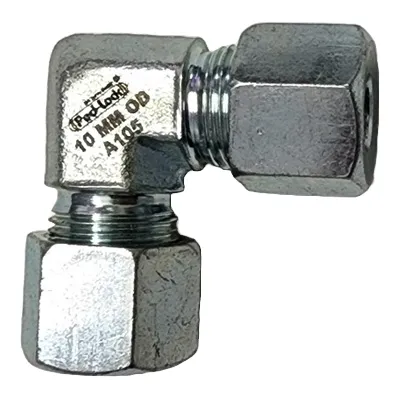

EQUAL ELBOW  “W”

EQUAL ELBOW “W”

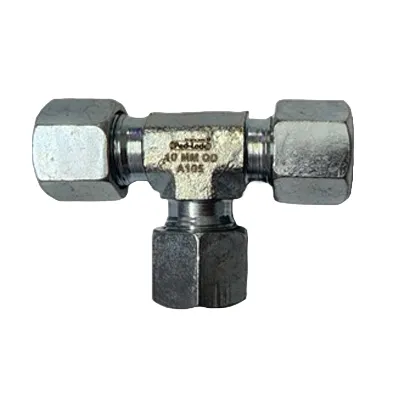

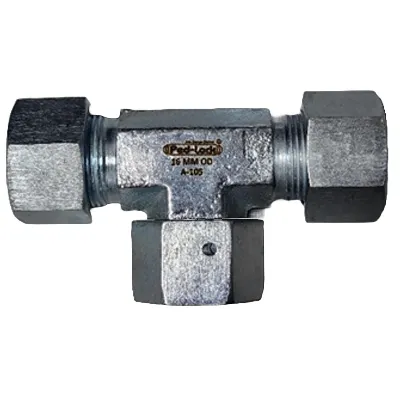

EQUAL TEE “T”

EQUAL TEE “T”

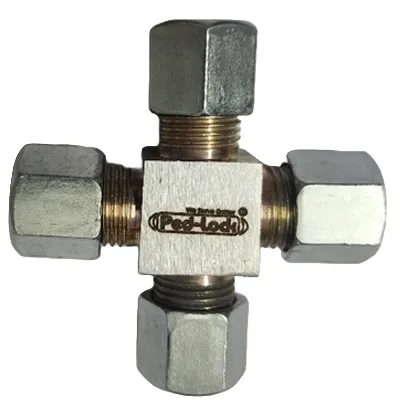

EQUAL CROSS  “K”

EQUAL CROSS “K”

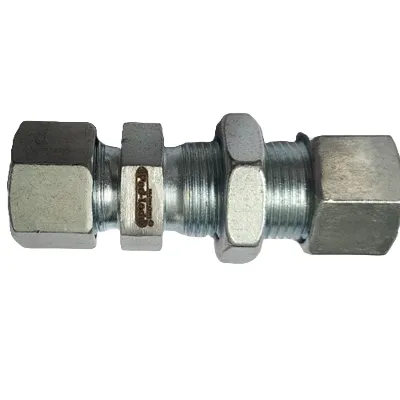

BULK HEAD STRAIGHT “SV”

BULK HEAD STRAIGHT “SV”

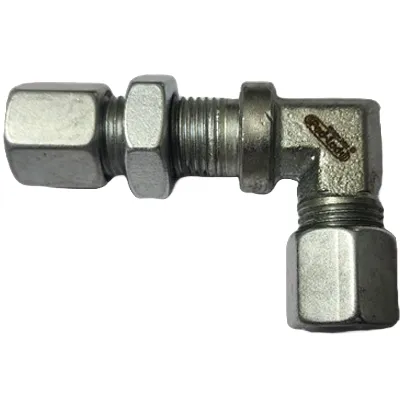

BUK HEAD ELBOW “WSV”

BUK HEAD ELBOW “WSV”

WELDING COUPLING  “AS”

WELDING COUPLING “AS”

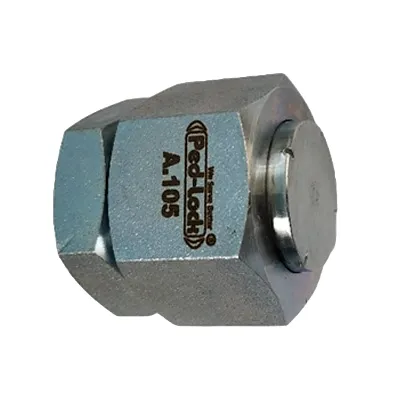

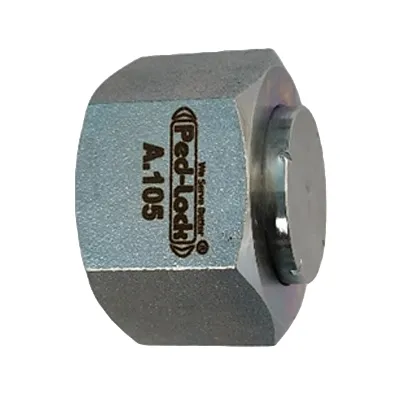

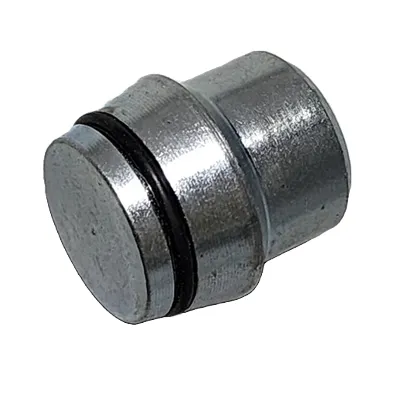

CLOSURE PLUG  “BUZ”

CLOSURE PLUG “BUZ”

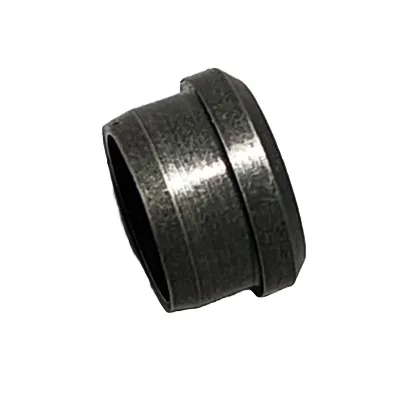

FERRUL “F”

FERRULE “F”

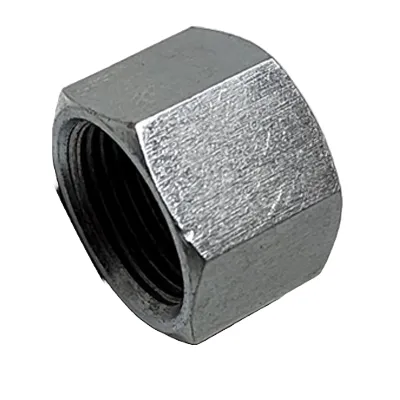

NUT “N”

NUT “N”

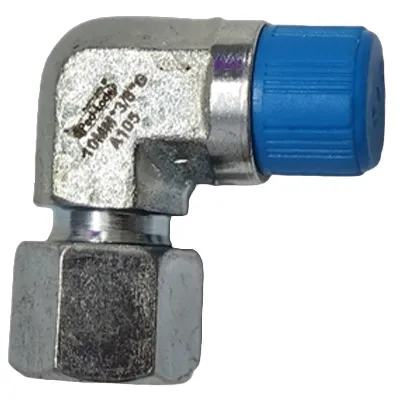

PARALLEL MALE STUD ELBOW “WWE”

PARALLEL MALE STUD ELBOW “WE”

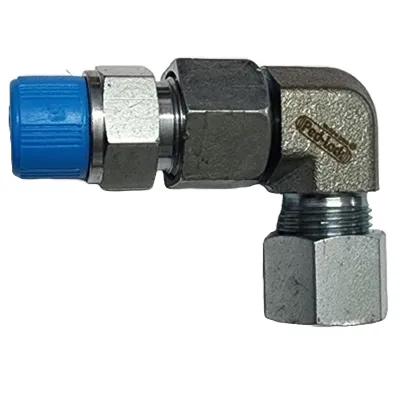

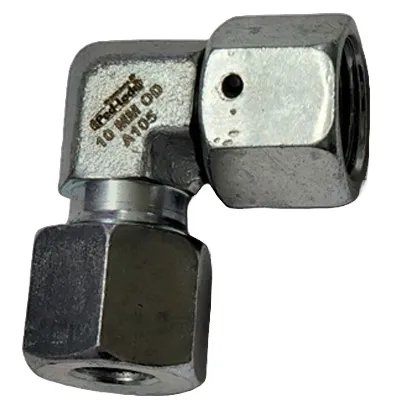

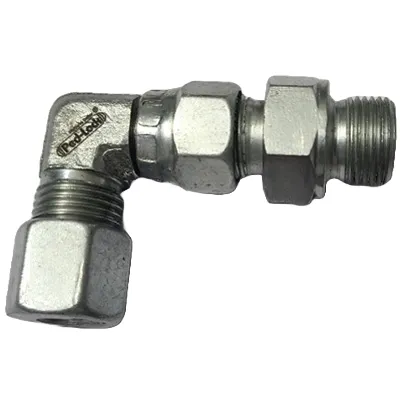

SWIVEL ELBOW “WEVW”

SWIVEL ELBOW “WEVW”

SWIVEL BENJO CONN. “WSWVE”

SWIVEL BENJO CONN. “WSWVE”

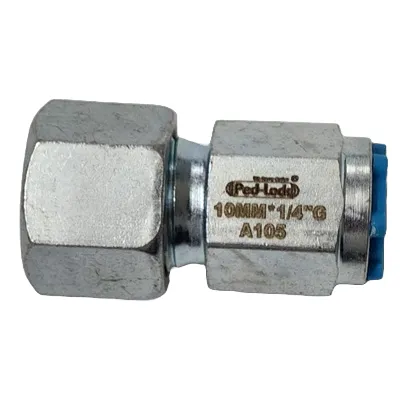

FEMALE COUPLING  “PGC”

FEMALE COUPLING “PGC”

REDUCHING SWIVEL UNION  “RSU”

REDUCHING SWIVEL UNION “RSU”

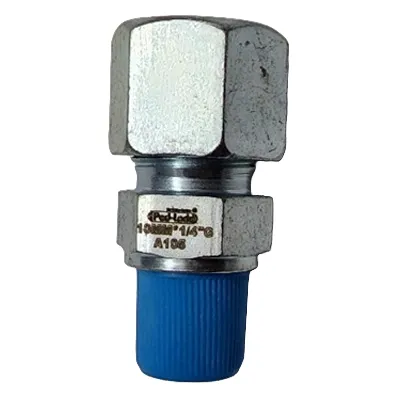

SWIVEL MALE STUD COUPLING  “SGE”

SWIVEL MALE STUD COUPLING “SGE”

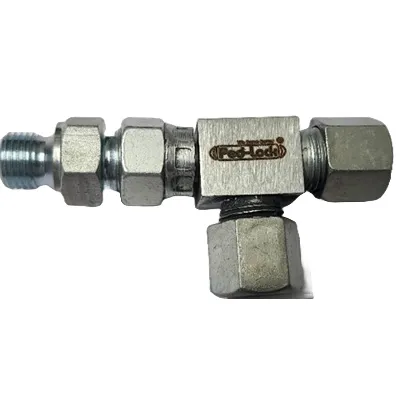

SWIVEL ADJUSTABLE BRANCH TEE “SABT”

SWIVEL ADJUSTABLE BRANCH TEE “SABT”

TEE BANJO “TB”

TEE BANJO “TB”

SWIVEL UNION “SU”

REDUCING SWIVEL UNION “RSU”
