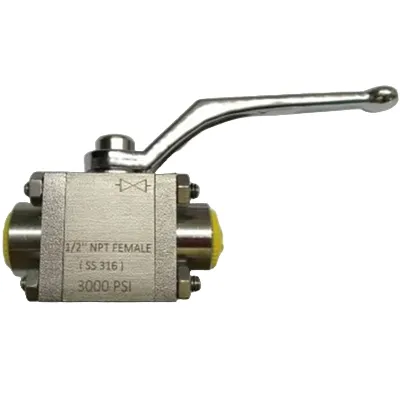

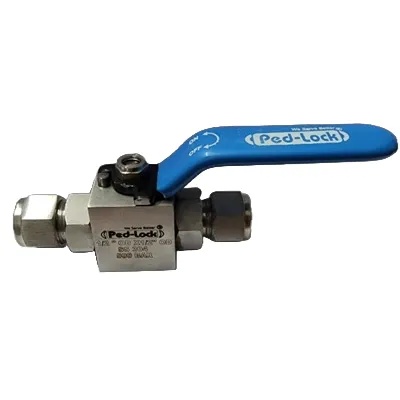

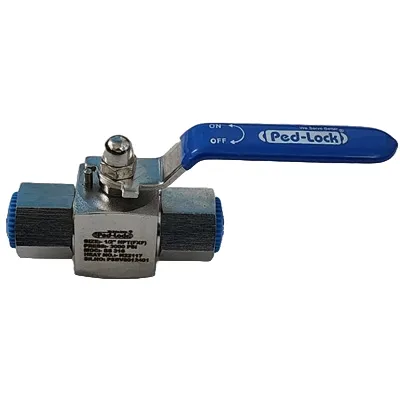

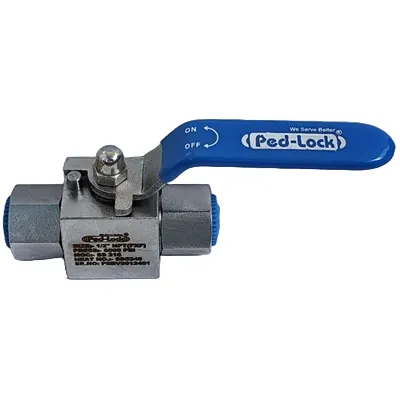

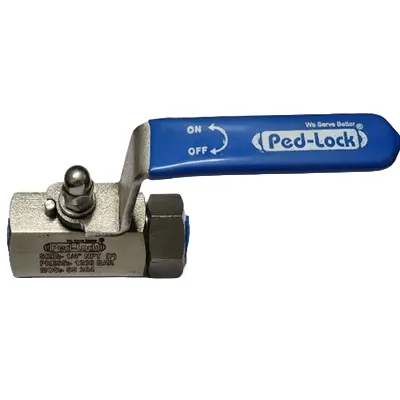

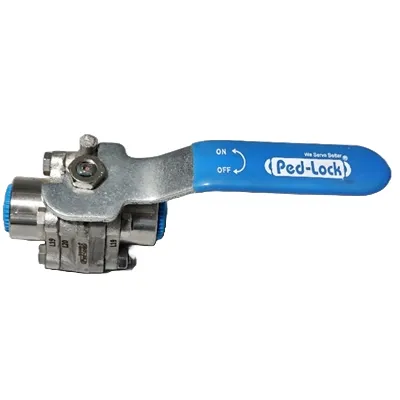

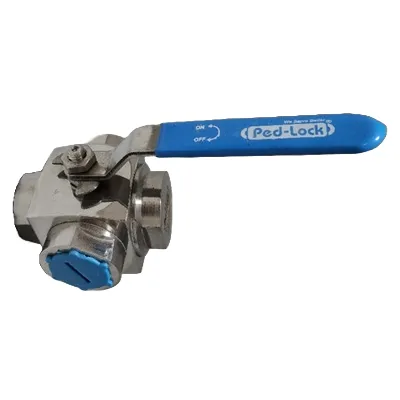

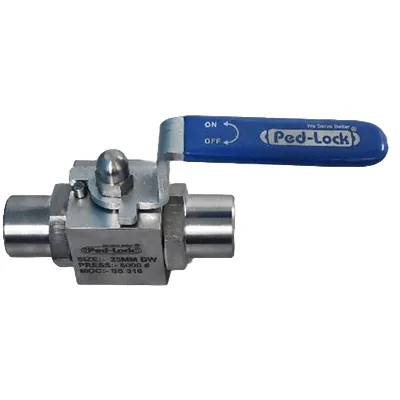

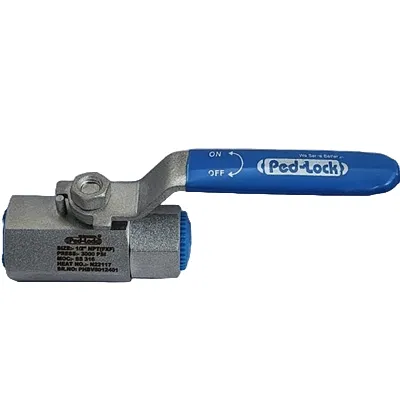

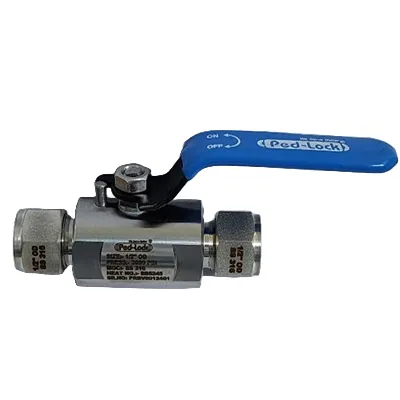

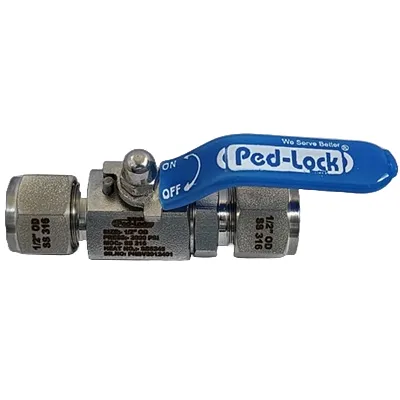

SQUARE BODY BALL VALVE 3000PSI TO 10000PSI

SQUARE BODY BALL VALVE 3000PSI TO 10000PSI
SQUARE BODY BALL VALVE 3000PSI TO 10000PSI
SQUARE BODY BALL VALVE 3000PSI TO 10000PSI
SQUARE BODY BALL VALVE 3000PSI TO 10000PSI
SQUARE BODY BALL VALVE 3000PSI TO 10000PSI
SQUARE BODY BALL VALVE 3000PSI TO 10000PSI
Specifications:
  • Rating: Up to 6,000 psi @ up to 600ºF
  • Stem & Body Seal: ‘O-ring (Nitrile & Viton)
  • Seat Packing: Ptfe & Peek
  • Tube Size: 1/4” to 2”
  • Connections: Threaded
  • Body: Bar Stock & Forged Steel
  • Material: SS, CS and other Material Other as Per Your Requirements
Application:
  • Chemicals industry
  • Food Fats and fertilizer industry
  • Ship building
  • Construction industry
Key Features:
  • SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
  • Ball hard chrome plated for smooth operation.
Physical Features:
  • Pressure rating 400 kg/cm2
Testing:
  • For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
  • Working pressure: 6000 psi (431 bar)
Hydro Tests:
  • Performed with pure water at 1-1/2 times of the working pressure.
  • Other tests like helium, seismic are available upon request.
